Blenheim

Specialised design for the PM4a
Named for the spectacular Palace in Oxfordshire

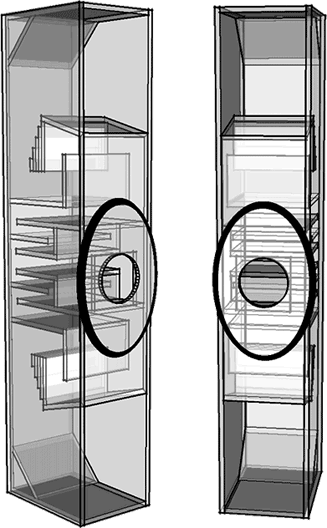

Forward-firing double-mouth back-loaded hypex horn with Olson style manifold expansion
Dimensions 77.25x14x19.5" HxWxD (1962x356x495mm)
SPL 98dB/W (m)
Frequency response ~50Hz - 20KHz.
Nominal impedance 8Ohms
A large double horn for the PM4a intended for use in large spaces, with high output impedance amplification, and primarily acoustic material.

Blenheim loudspeaker cabinet copyright Woden Design. All rights reserved. Purchase price covers personal use only. Commercial production requires a licence from Woden Design

contact Scott
